Compact Guestroom Control with Durable, Tamper-Resistant Design
The HotelTech Ultra is a compact guestroom thermostat built for properties that need durable controls, simple operation, and reliable performance across busy hospitality spaces.
With its easy-to-read backlit display, push-button control, tough and tamper-resistant casing, Ultra supports everyday guest comfort with manufacturer support and competitive pricing.
Ultra is designed for properties that need a durable thermostat without adding unnecessary complexity to the room. It gives guests and staff familiar controls, while the commercial-grade casing helps the unit stand up to frequent use.
Ultra keeps the in-room experience simple. Guests can view the selected temperature and fan mode, adjust settings with red and blue buttons, and use familiar controls without needing instructions. Ultra supports:
Your team can adjust protected settings when needed, while the guest-facing interface stays simple and easy to understand.
Ultra is available in model options for common hospitality HVAC systems. This allows properties to use one thermostat family across different room types and mechanical configurations.
Supported system model types include:
Your HotelTech representative can help identify the Ultra model that fits your property’s HVAC system and installation requirements.
HotelTech manufactures thermostats for spaces where controls need to stay reliable through frequent use. Ultra is designed for guest-facing and staff-accessed areas where durability, simple operation, and consistent comfort all matter.
Ultra is suited for:
HotelTech designs and manufactures hospitality thermostats for properties across North America.
Our Ultra thermostats are made for guestrooms and property environments where simple controls and durable construction are important.
HotelTech manufactures thermostats directly, helping properties access commercial-grade, high-quality controls at affordable prices.
Working directly with us helps your team get clear answers about model selection, setup, and thermostat requirements.
Our products are UL/CSA certified, commercial-grade, and trusted in over one million installations across North America since 1992.
If your property needs a compact thermostat with tamper-resistant construction, straightforward controls, and model options for guestrooms or common areas, Ultra is built for hospitality use. Contact HotelTech today to request pricing for your property.
24, 120, 208/230 or 277 VAC available.
Approximately 5”h x 3“w x 1”d
2″ x 4″ or 4″ x 4″ mounting box using a Larger wall plate
Commercial-grade, high-density, high-impact, textured plastic. Tough and tamper-resistant.

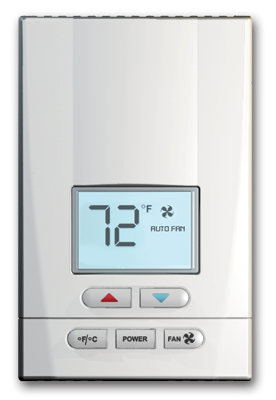

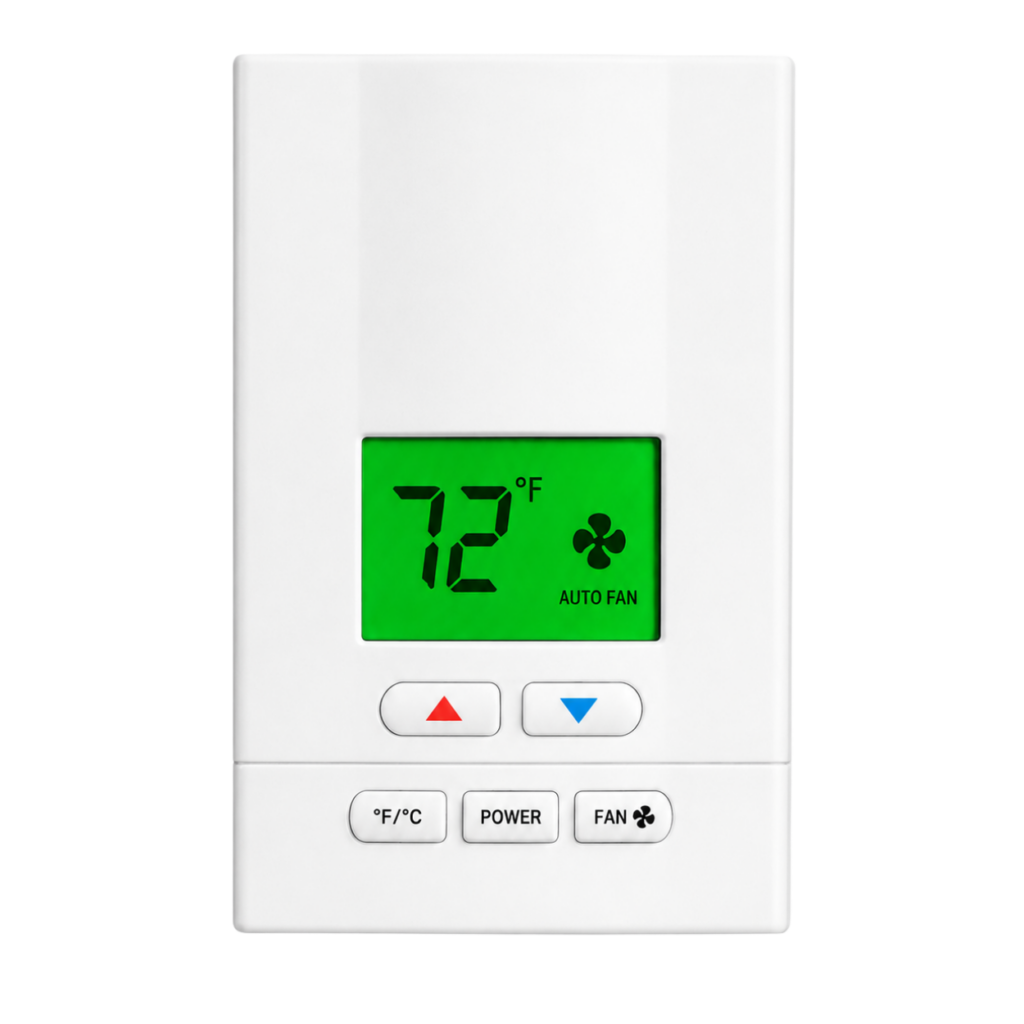

LCD with Backlighting. Easy to read; shows selected Set Temperature and Fan Mode. Display size is approximately 1-3/4“w x 1-1/4”.
24V AC/DC: 1 amp Max. per stage; Not to exceed 2 amps Total Combined Load
110-120 VAC: Pilot Duty Heat or Cool, 2 amps Max; Max Fan, 4.4 FLA; 26 LRA
208-240 VAC: Pilot Duty Heat or Cool, 2 amps Max; Max Fan, 2.2 FLA; 13 LRA
265-277 VAC: Pilot Duty Heat or Cool, 2 amps Max; Max Fan, 1.8 FLA; 10.8 LRA
Certified to UL and CSA standards.
Selectable Range: 60°-90°F (16°-29°C).
Adjustable Range (“Limits”): 66°F (19°C) Cooling limit. 82°F (30°C) Heating limit.
Push button, red and blue arrows, for easy temperature selection in 1°F or 1°C increments.
Press to start up the display. The default set temperature upon start-up is 72°F (22°C). Adjustable.
Pressing the °F/°C button allows the user to change from a °F to °C display.
Press to toggle through available Fan Speed or Mode options. One-, two- or three-speed models are available. The device can automatically select the optimal fan speed for performance and energy efficiency.
User-friendly, automatic switching between heating and cooling. Heat/Cool Temperature Dead Band is 4°F (2°C). Cool-only and Heat-only models are also available.
Designed to handle typical brown-out/surge situations.
For engineering diagnostic purposes, the thermostat can interchangeably display the actual room temperature AND the set temperature and fan status by simultaneously pressing and holding the red and blue buttons for 7 seconds, then releasing.
Simple and hidden, for qualified personnel to field-customize features according to their HVAC system and to their energy conservation requirements.
Specifications subject to change.
Yes. Ultra measures approximately 5”h x 3“w x 1”d, giving properties a compact thermostat option for guestrooms, common areas, and similar spaces.
Ultra uses commercial-grade casing and tough construction to help protect the thermostat in high-use hospitality spaces. It is built for daily guest, resident, and staff interaction.
Yes. Ultra is available for PTAC applications, as well as fan coil, heat pump, and split systems. HotelTech can help confirm the correct model for your setup.
Yes. The Two-Button Ultra model is available for common areas where properties need simple control and durable construction.
Yes. Ultra includes programmable settings and available automatic fan speed selection to help support efficient operation based on your HVAC system and property requirements.
Ultra is a compact, tamper-resistant thermostat for guestrooms, common areas, and high-use hospitality spaces. Ultramax is a networkable touch-screen thermostat designed for centralized configuration and consistent settings across guestrooms.
HotelTech works directly with hospitality teams to match the right thermostat model to your property’s HVAC system, room types, and common-area needs.
